| 1. Loosen the quick takedown thumbscrew
and remove the sideplate. Remove the spool from the frame. Some models
have a clip holding the spool. A little pressure will free the spool.
Spray a rag with some Silicon Spray, ReelX, Reel Magic, or CRC and wipe
down the entire reel to remove any dirt, salt, etc.. You can use the
Q-Tip swab to access the tight areas. |
|

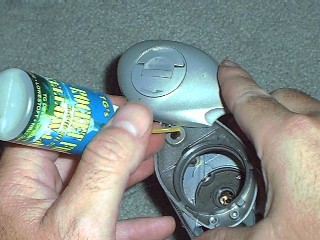

| 2. Apply a small drop of oil to the
bearing that's located in the center of the sideplate. I use the
applicator tip to control the amount of oil applied. |
|

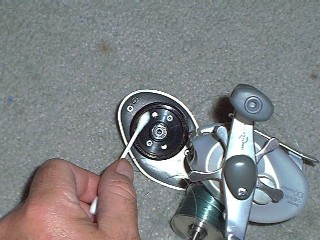

| 3. Saturate a Q-Tip with alcohol and clean
the inside of the brake drum. After it dries, run a swab that's been
wetted with oil around the drum. A very thin, light coat is all that is
required. |
 |
| 4. Clean and dry the spool shaft. Oil on
this shaft will reduce your free-spool capabilities and decrease casting
distance. |
|

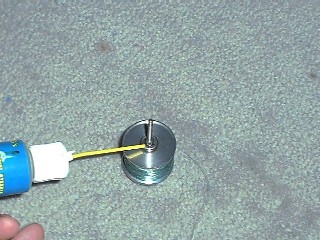

| 5. Place one drop of oil on the spool
shaft bearing. |
 |

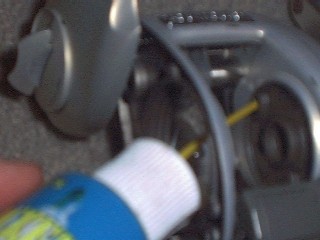

| 6. Place one drop of oil on the end of the
worm shaft. |
 |
| 7. Place one drop of oil on the handle
shaft. |
 |
| 8. Place one drop of oil on each end of
the levelwind worm gear and one in the center. |
|

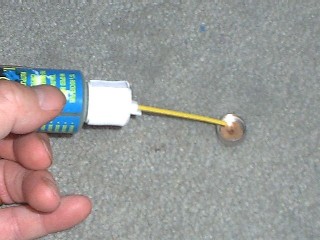

| 9. Remove the cast control cap. Some
models have a spring under the cap. Swab the cap out and place one drop
of oil on the shim. If the shim is dimpled, flip it over. |
 |
| 10. Place one drop of oil on the bearing.
The bearings are exposed on the Calcuttas and standard Curados. The
Chronarchs and Curado SF reels have two nylon seals (pictured) with the
spool clip sandwiched between them. These need to be removed to access
the bearing. |
|
| 11. Place one drop of oil on each of the
handle knobs. |
|
| Your reel is now clean, lubed and ready to
re-assemble. Performing this simple maintenance regularly will ensure
that your reel continues to provide you with good service. Sending the
reel off for professional service annually will ensure that worn parts
are detected and replaced. |
|
